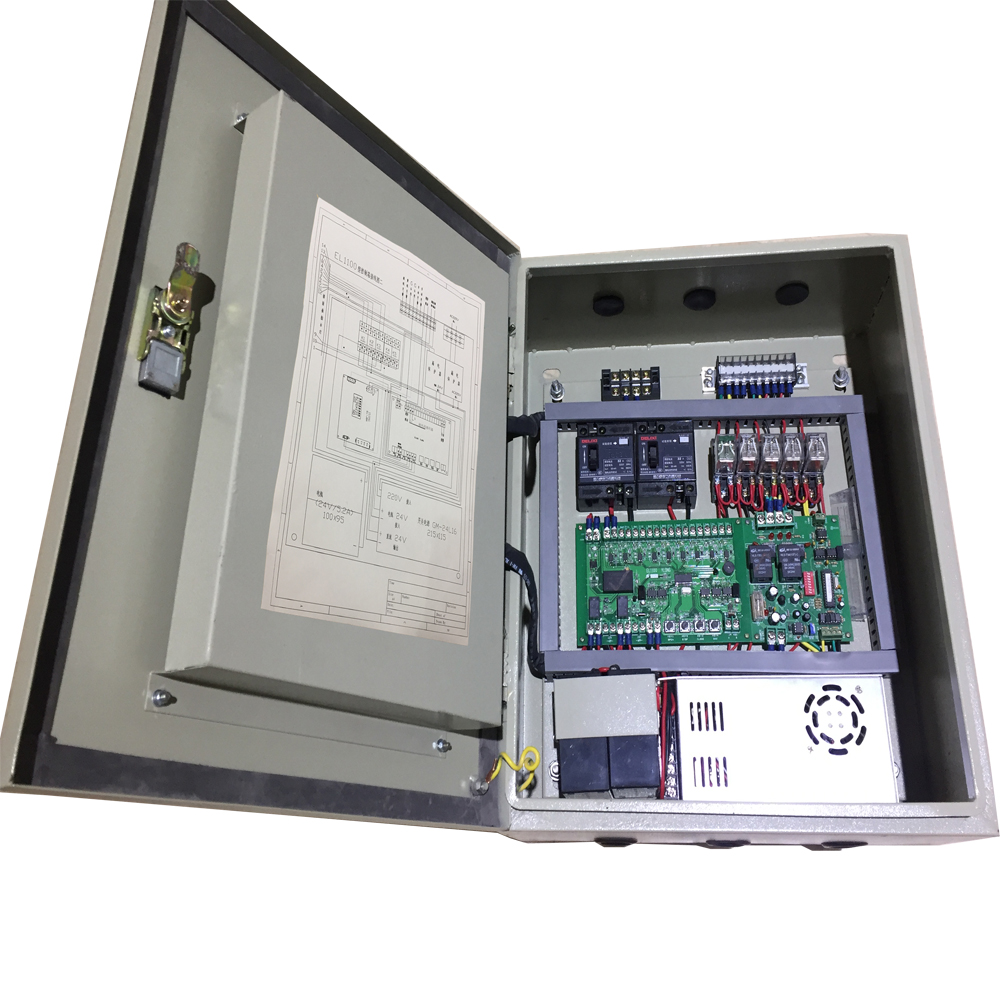

Our control system can be used into high building, factory plant and home for natural &smoke ventilation. It has many functions as below.
technical parameters:
| Input voltage |
230VAC |
| Output voltage |
24VDC |
| Work temperature |
-5ºCto 65ºC |
| Protection grade |
IP54 |
| Dimension |
500*400*250mm, 600*500*250mm |
| Power rating |
500--3000w |
| Continuous work time of back up battery |
72 hours |
Control Mode:
1) Fire center signal control has priority to output control.
2) Hand button ( open/stop/close ) or emergency button
3) Multicircuit detective signal can detect smoke, wind, rain, temperature. It also can control intelligence building.
4) Automatic timing to open and close. ( optional )
5) Remote control to open and close. ( optional )
6) Telecontrolled by phone. It can combine with any phone to use . ( optional)
7) Computer control. ( CAN bus technology; TCP/IP network agreement ) (optional)
8) Output feedback signal: fire signal feedbacks passive contact signal to fire center after openng window.
9) There is automatic receiving system of fire signal, wind, rain.
There is also automatic receiving and remote control guide system.
10) It has CPU central control system so that it can do software programming according to customer’s requests.
11) It contains reserve power to realize handover power automatically when the power failed.
It ensures window drive can work normally no less than 72 hours when power failed . And it can save datas at the same time.

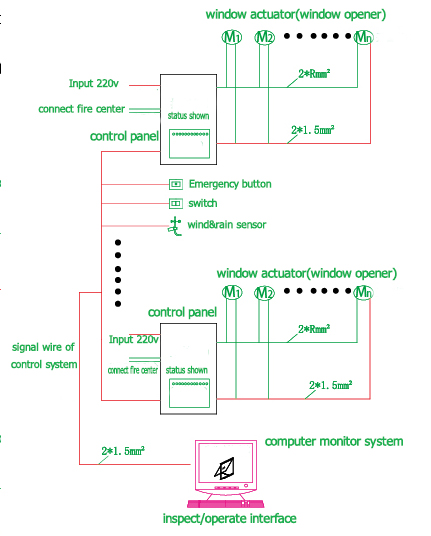

12) There are connecting ports to connect control device, signal wire,
window drive connecting wire in the control box.
